Versatile Electric Motor Design Software for Every User
Our advanced software suite is the ideal choice for electric motor design, catering to everyone from established companies and startups to individual designers and students. It offers an extensive array of modeling and simulation capabilities, encompassing analytical, semi-analytical, electromagnetic, thermal, mechanical, and NVH analyses. Tailored for diverse design needs, our integrated solution features three synergistic modules, ensuring smooth workflow compatibility and seamless CAD integration. This makes it a top choice for anyone in need of a comprehensive, adaptable tool for electric motor design.
Select the Perfect Package for Your Electric Motor Design Project
MotorWizard
ELECTRIC MOTOR DESIGN & SIMULATION

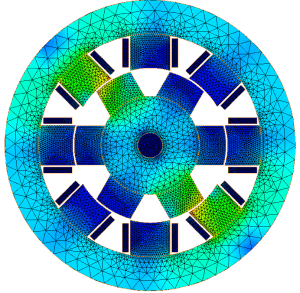

MotorWizard revolutionizes the design and optimization of electric motors, including Brushless Permanent Magnet Synchronous Motors and Switched Reluctance Motors. This template-based tool offers a suite of predefined parameters for seamless simulation and performance prediction under various operating conditions like speed, current, and temperature. With its integrated analytical and finite element-based solvers, MotorWizard makes the electric motor design process not only effortless but also remarkably accurate and swift. Ideal for professionals seeking efficiency in motor design, MotorWizard is your key to quicker, precise motor optimization.
EMWorks2D
2D SIMULATION SOFTWARE
Efficient 2D Electromagnetic Simulation Software

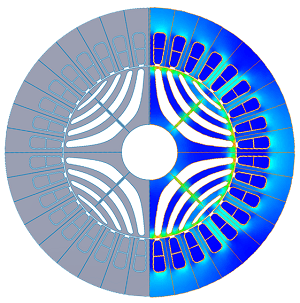

EMWorks2D offers low-frequency electromagnetic simulation using FEM, ideal for solving magnetic, electric, and transient issues in 2D. It supports both planar and axisymmetric geometries, streamlining your design process. Key features include various magnetic analyses (static, harmonic, time-domain) and multi-physics options like motion and thermal coupling.
Applications include radial flux motors, linear motors, actuators, and magnetic gears, making it a versatile tool for diverse engineering needs.
EMS
ELECTROMAGNETIC SIMULATION
Comprehensive 3D Electromagnetic Simulation Software

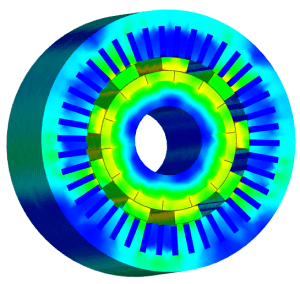

EMS specializes in low-frequency 3D electromagnetic simulation, seamlessly integrating multi-physics capabilities. This versatile software allows for combined analysis of magnetic, electric, circuit, motion, thermal, and structural elements in a user-friendly environment.
Applications include radial, axial, and transverse flux motors and generators, linear motors, linear and rotational actuators, magnetic gears, eddy current brakes, and more.
| Functionality | MotorWizard | EMWorks2D | EMS |
|---|---|---|---|
| Template-based | |||
| Geometry Flexibility | |||
| Circuit Coupling | |||
| Parametric Simulation | |||
| Field Results Export | |||
| Motion Capabilities | |||
| Thermal Analysis | |||
| Thermal Structure |
